CUSTOM ORDER – MATÍAS (SWEDEN)
Product: Argentine Grill + Industrial BBQ Cart
Model: Santa María Grill mounted on industrial cart
GENERAL DIMENSIONS
Width: 900 mm
Depth: 600 mm
Total height: 1,600 mm

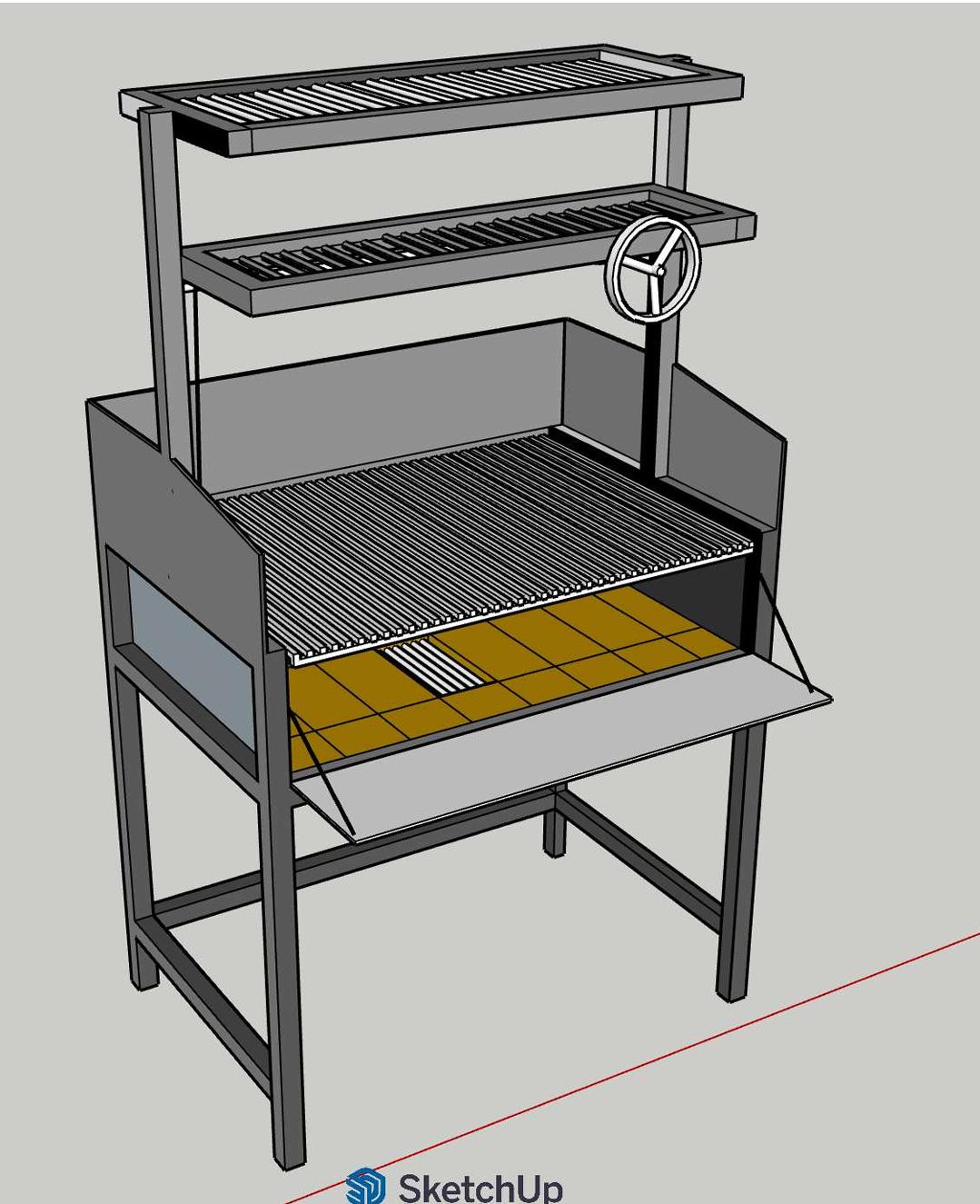

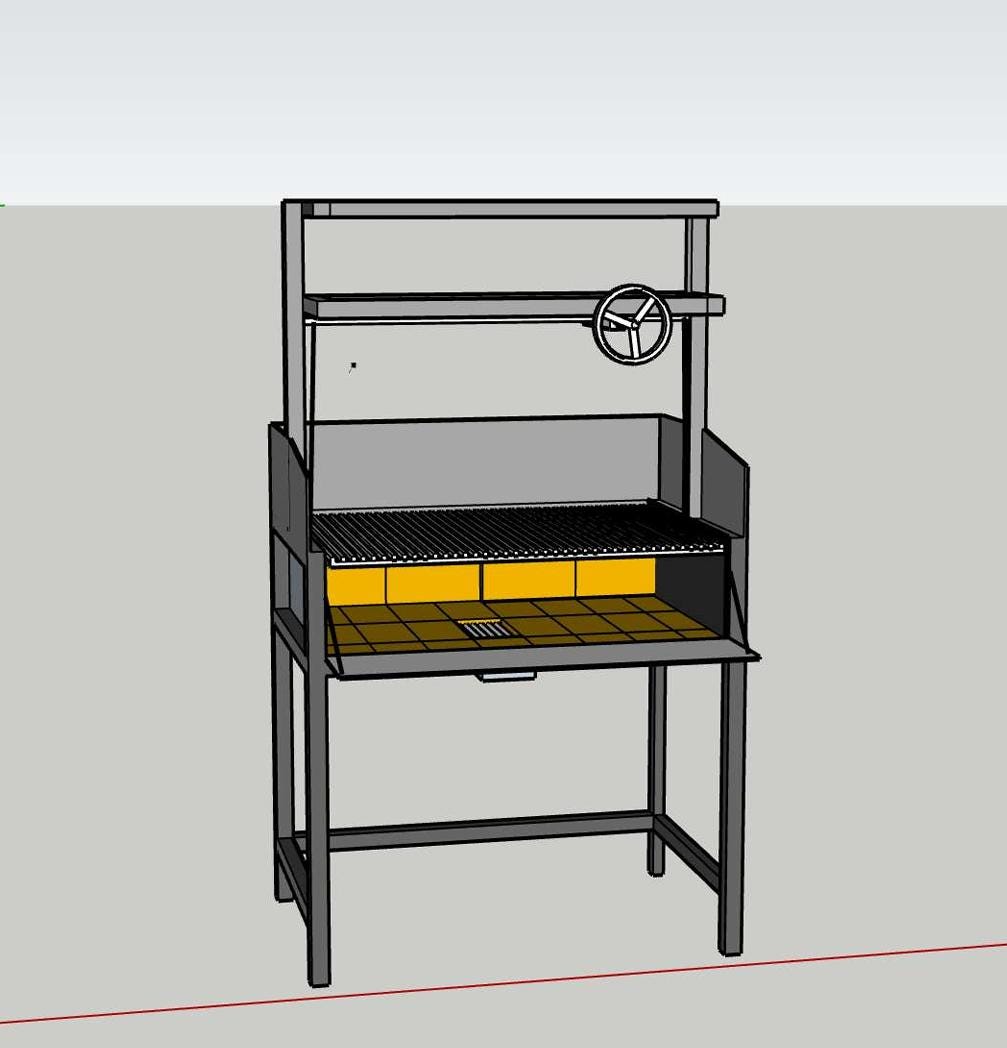

1. ELEVATING GRILL SYSTEM – DOÑA JACINTA MODEL (ADAPTED TO CART)

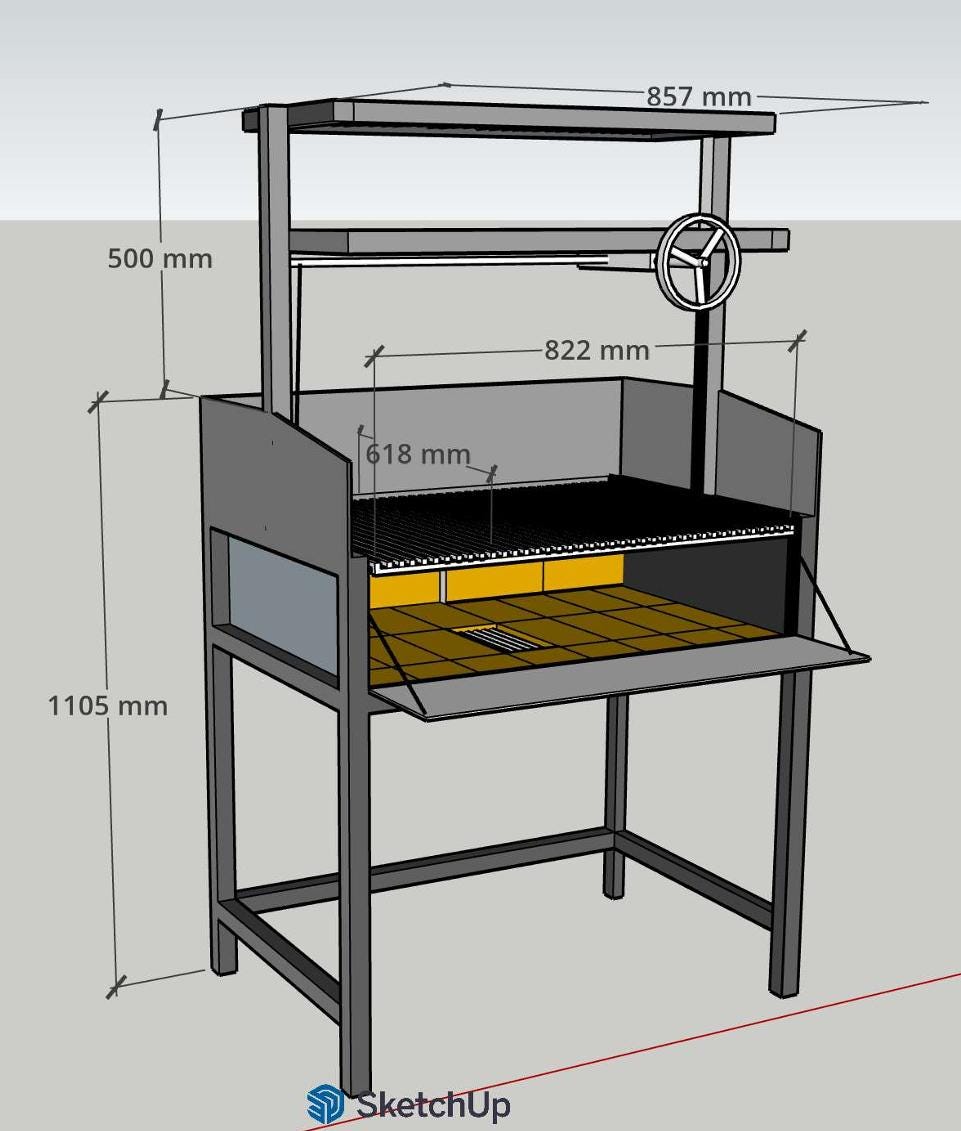

Dimensions:
Total size: 900 × 600 mm
Cooking area: 822 × 600 mm
Grill Configuration
Solid round steel bars Ø 8 mm
Composed of 2 removable grill sections (411 × 600 mm each)
Reinforced structure for intensive use
Suitable for charcoal or firewood (Santa María style)
Lifting System
Front right elevation system with metal wheel (Ø 170 mm)
Rack-and-pinion mechanism for precise height adjustment
Upper Warming Racks
2 removable warming racks (300 × 857 mm)
Ideal for resting meat and maintaining temperature
Made of solid Ø 8 mm steel
Easy to remove and clean

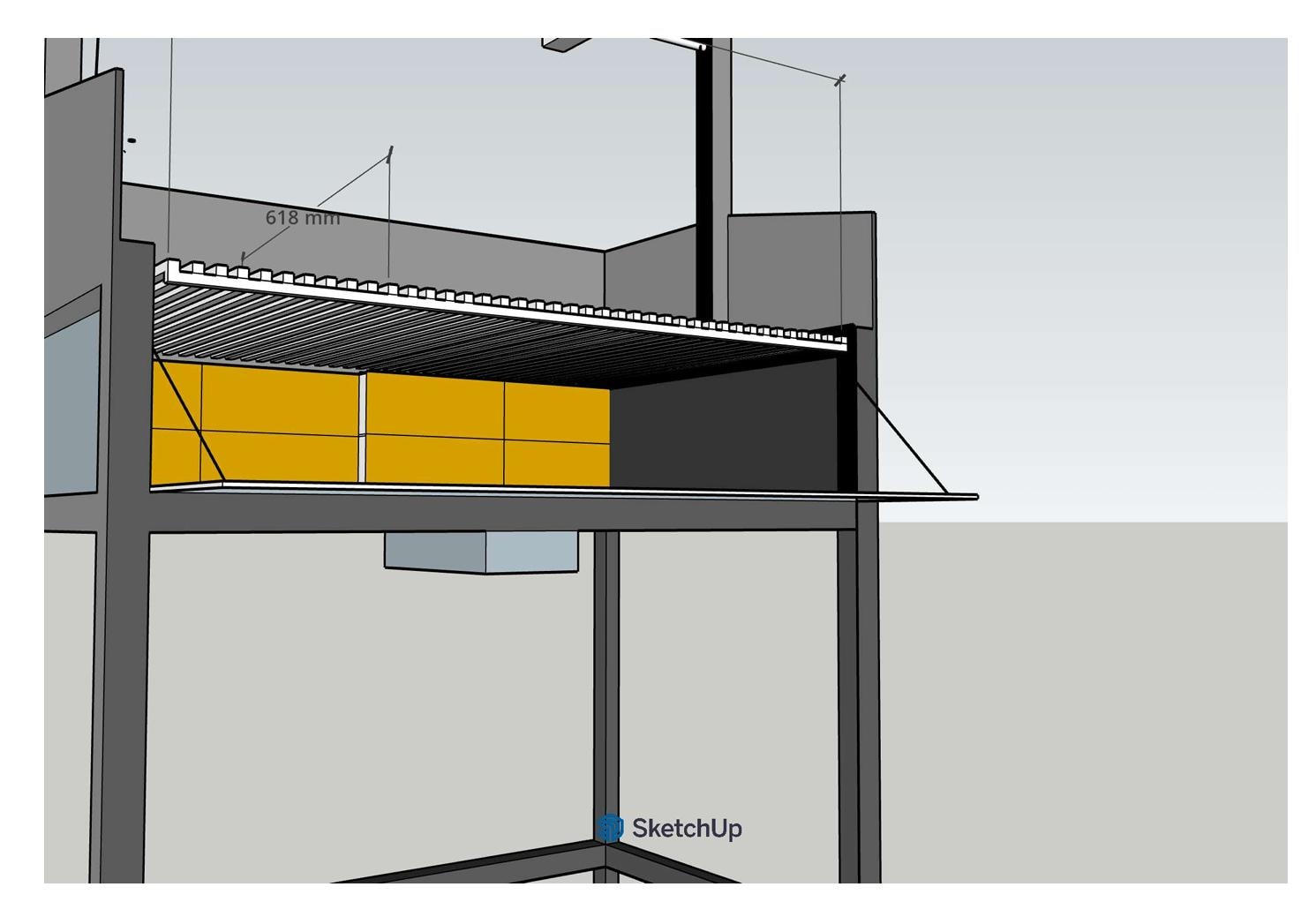

Firebox (Refractory Area)
Firebox lined with refractory bricks
Excellent heat retention and distribution
Height: 250 mm
Designed for intensive use
Ash Management System
Internal grate for ash evacuation
Hidden removable ash drawer
Easy cleaning without disassembly
Protection & Design
Side heat shields with folded edges
Splash and heat protection
Front folding lid with handle
Custom engraving available (name or short text)
Materials
Main structure in carbon steel
Square tube: 30 × 30 × 1.5 mm
Structural angle: 25 × 25 × 3 mm
Solid round steel Ø 8 mm components
Reinforced welding for durability
2. INDUSTRIAL BBQ CART
Structure
Carbon steel construction
Heat-resistant black matte paint (up to 600°C)
4 mm steel plate body
Reinforcements
Structural tube: 40 × 40 × 2 mm
Fully reinforced base
Fully welded structure
Load Capacity
Supports up to 750 kg
Combustion System
Refractory bricks: 22 × 11 × 2 cm
Thickness: 2 cm
Thermal protection for metal body
Ash Collection System
Internal steel grate (4 mm)
Gravity ash drop system
Removable ash drawer
Mobility
4 industrial wheels Ø 150 mm
2 swivel
2 with brake
High stability on demanding surfaces
DELIVERY AND LOGISTICS
Delivered fully assembled and ready to use
Includes installed refractory bricks
Includes shovel and poker
Production Lead Time
22 days from order confirmation
Shipping
European pallet
Base: 100 × 80 cm
Total height: 180 cm
Delivery Method
Curbside delivery
Destination
Sweden
Postal code: 87160 Härnösand
Full address: Pending confirmation
PRICE
Grill: €850.00
Shipping: €450.00
TOTAL: €1,300.00
NOTES
Delivered ready for immediate use
Design can be adapted upon request
We remain available for any questions or modifications
